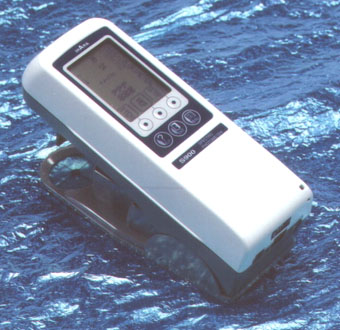

The Ihara S900 Spectrophotometer is a small, lightweight portable unit, designed for easy operation and high precision for a variety of functions.

• Portable - small & lightweight

• Battery Powered

• Optics: 0/45º

• Measuring Range: 400-700nm

• Measuring Interval: 10nm

• High Precision: ΔE*ab < 0.05

• Easy to use - on screen guidance

• Variety of Functions

• Graphical Display

• IR Communication Port

• Attractively Priced

Measuring Functions:

• Spectral Reflectance

• Chromaticity

• Colour Difference

• Densitometer Functions

This is a top quality Spectrophotometer with outstanding accuracy, suitable for a wide range of colour measuring applications as well as applications in graphic arts.

• Top Performance & Reliability  Made in Japan by Ihara Electronic Industries, the S900 has proven reliability and accuracy.

• Fully Portable  Small & lightweight unit - battery powered.

• Easy Operation  Menu based screens, assistance function, 'Help' key.

• High Precision  Repeatability ΔE*ab < 0.05.

• Variety of Functions  Spectral reflectance, Chromaticity (XYZ, L*a*b*, etc.), Colour Difference ΔE*ab, ΔECMC, (ΔE*94, etc.) and Densitometer Functions.

• Graphics LCD  Large LCD enables display of spectral data.

• User Friendly  Left or right hand display option, sound control.

• Quick Calibration  Recalibrate the unit in seconds.

• Printer & Computer Interface  Infrared communication port (IrDA) plus RS 232C serial interface provided.

Specifications:

• Measuring Geometry  0/45º Double Beam Optical Filter System

• Light Source  Halogen Lamp (Approx. 2856K)

• Detector  Photodiode

• Spectral Measurements  Interference Filter (Bandwidth 14nm)

• Spectral Range  400-700nm

• Spectral Interval  Measurement: 20nm, Output: 10nm

• Aperture Diameter  10mm (standard), 3mm, 2mm

• Illuminants  A, C, D50, D65, F2, F6, F7, F8, F10, F12

• Standard Observers  2º, 10º

• Repeatability  ΔE*ab < 0.05 (10mm aperture, standard deviation for 20 measurements of white board)

• Measurement Time  Approx. 2 seconds

• Spectral Measurement Functions  Spectral Data (Values/Graphs), XYZ, Yxy, L*a*b*, L*C*h*, L8u*v*, Hunter Lab, Whiteness, YI, MI, Density, Pass/Fail Function, sRGB, ΔXYZ, ΔYxy, ΔL*a*b*, ΔL*C*h*, ΔL8u*v*, ΔHunter Lab, ΔWhiteness, ΔYI, ΔDensity.

• Colour Difference  ΔE*ab, ΔECMC, ΔE*94, ΔE*uv, ΔE*Hunter, ΔE*EMC2.

• Measurement Averaging  Possible

• Data Storage  Up to 400

• Reference Colours  Up to 40 (key entry or stored data)

• Density Measurement Functions  Density, Density Difference, Dot Area, Dot Gain, Auto-Function, Trap, Print Contrast, Hue Error, Greyness, Saturation, Cast, Brightness, Dot Analysis, Plate Dot Area

• Densitometer Filter Responses  ISO Status T, E, A, I DIN: Wide, Narrow

• Display  128 x 64 Dot Graphic LCD

• Display View  Left or Right Handed

• Contrast Adjustment  Installed

• Power Supply  Ni-Cad (4.8V), 800mAh

• AC Adaptor  9V, 500mA, Centre Negative

• Recharge Time  Approx. 1.5 hours

• Measurements per Charge  Approx. 1,000

• Battery Status  Displayed on screen

• Sound Control  Possible

• Warm Up Time  None

• Auto Power Off  4 options

• Operating Temperature Range  5ºC - 40ºC

• Communications Ports  Infrared communication, RS 232C serial interface

• Dimensions  212mm(L) x 77mm(W) x 84mm(H)

• Weight  0.77kg (including batteries)

• Temperature Sensor  Built in, prompts for recalibration if the temperature changes

• Standard Accessories  Operating Manual/Calibration Standard/Zero Cap/AC Adaptor/ Carry Case
